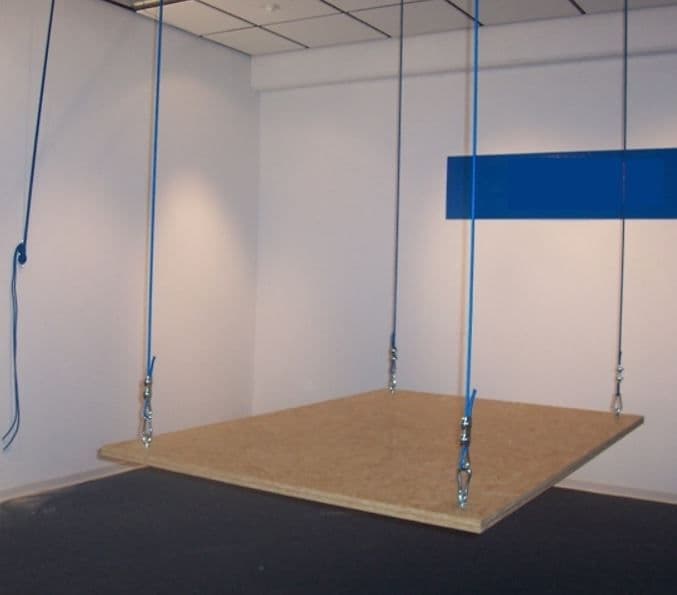

A floating table

Beginner
90min

Required tools

Board (thickness and dimensions as required
Drilling machine
open-end spanner
dowel

Step by step manual

1

Step 1

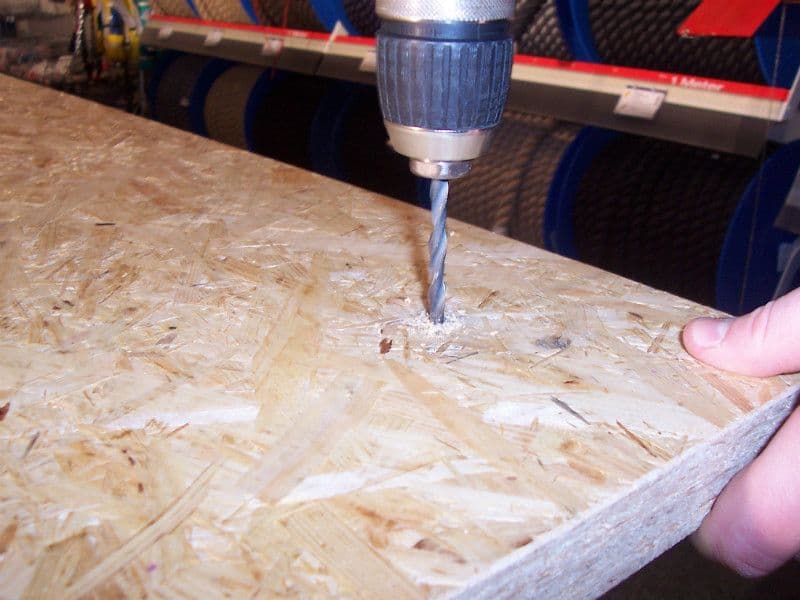

Drill holes in the board at the corners.

2

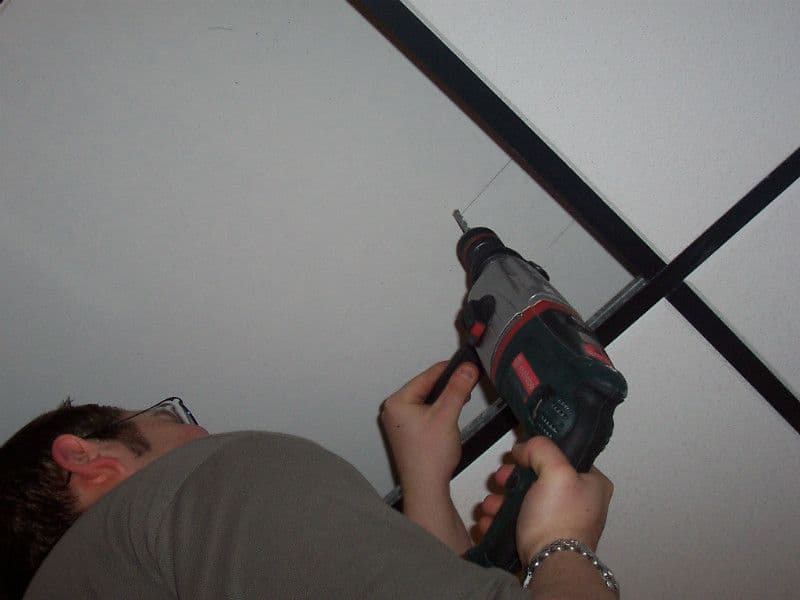

Step 2

Drill 6 holes in the ceiling and insert dowels into the four holes

Drill 4 holes in the ceiling at the same spacing as the holes on the panel.
3

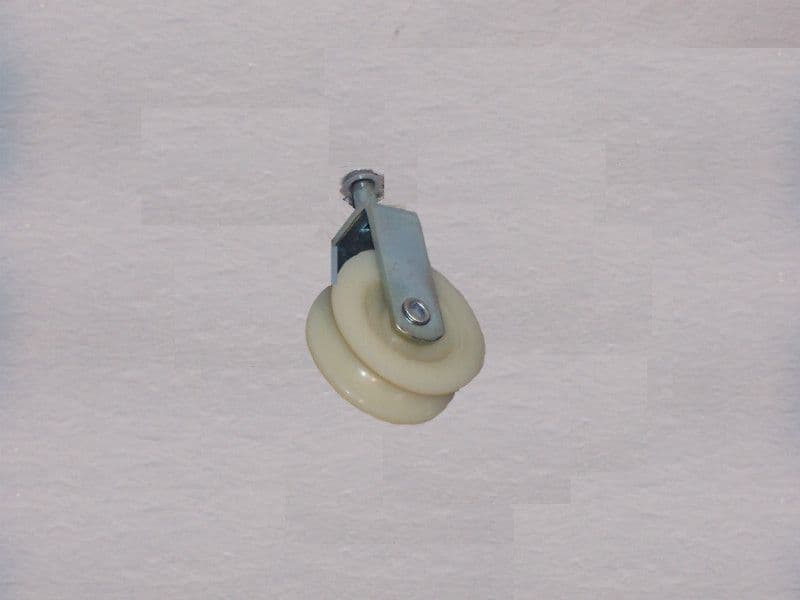

Step 3

Screw an eyebolt into each of the two dowels on the ceiling near the wall and screw a bird roller into each of the other four holes

4

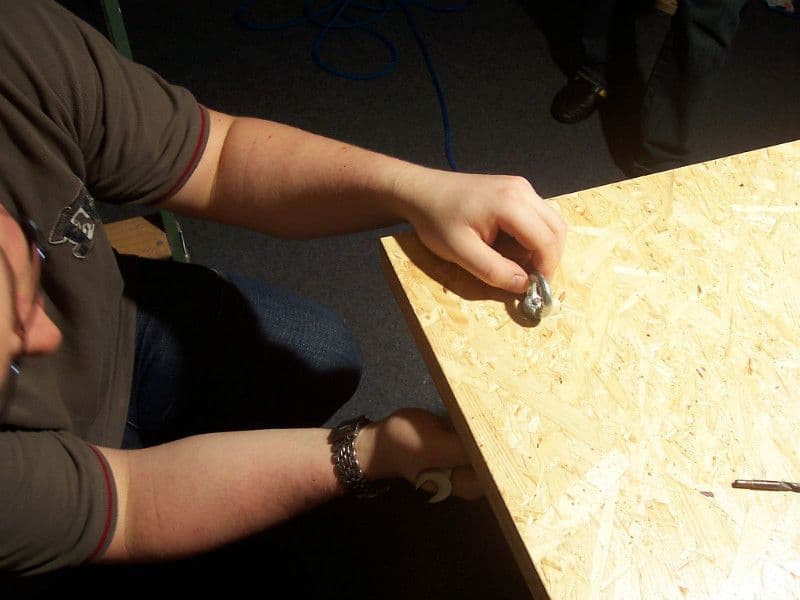

Step 4

Insert a ring nut through each of the holes in the plate and counter-lock with a nut

5

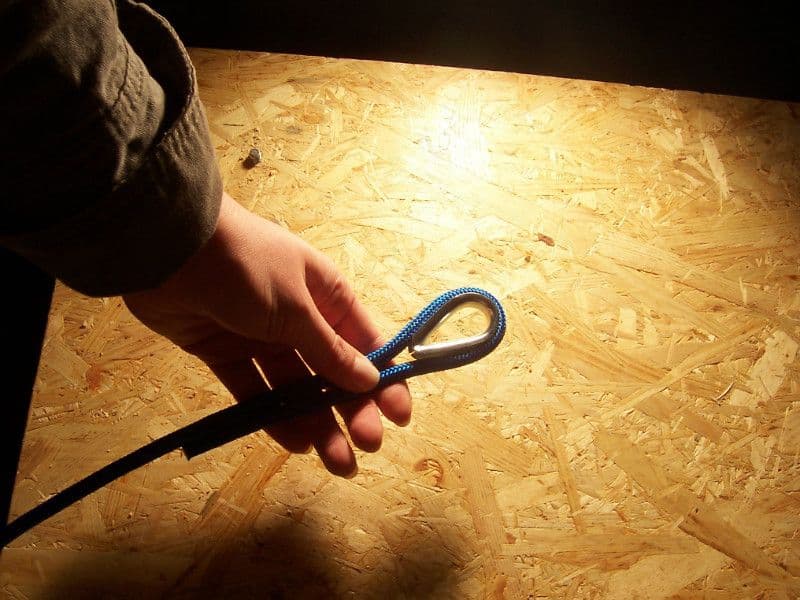

Step 5

Make a loop around the rope thimble with the end of the rope (4X)

6

Step 6

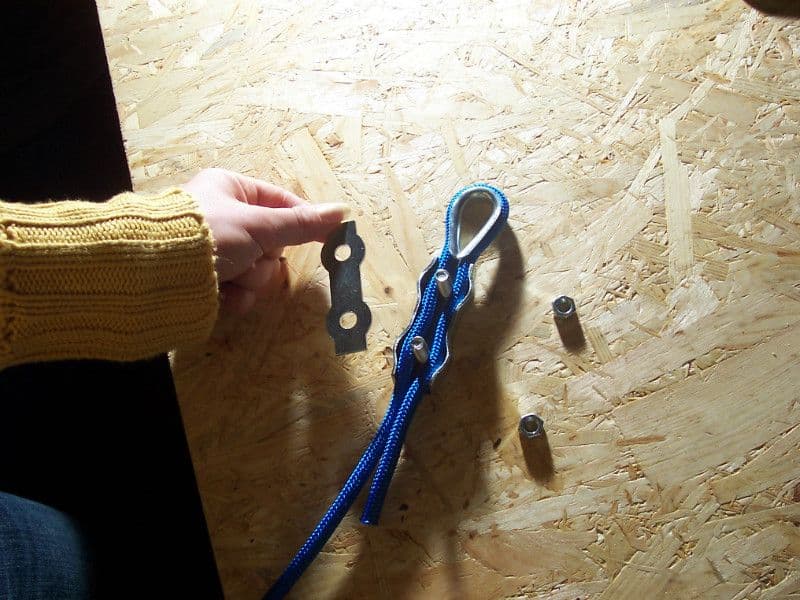

Place both rope ends in the rope clamp below the rope thimble

7

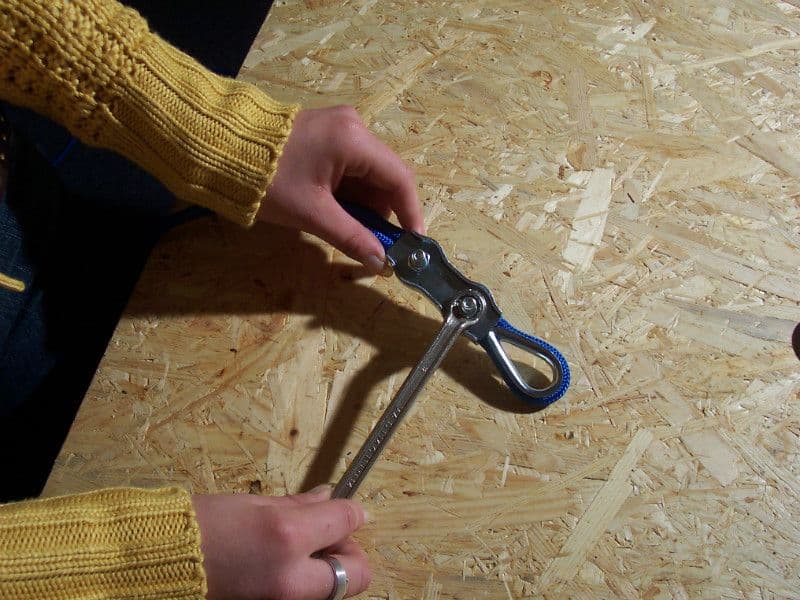

Step 7

Tighten the nuts in the cable clamp

8

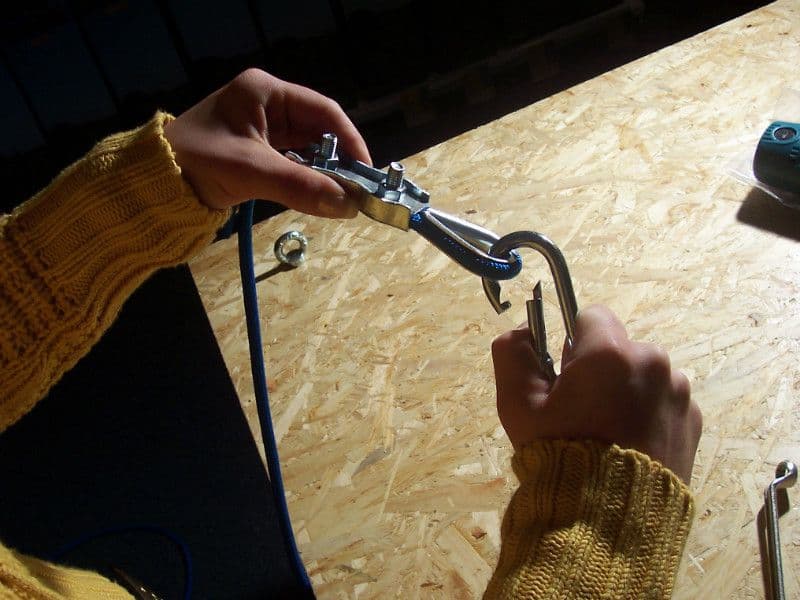

Step 8

Attach a carabiner to each rope thimble

9

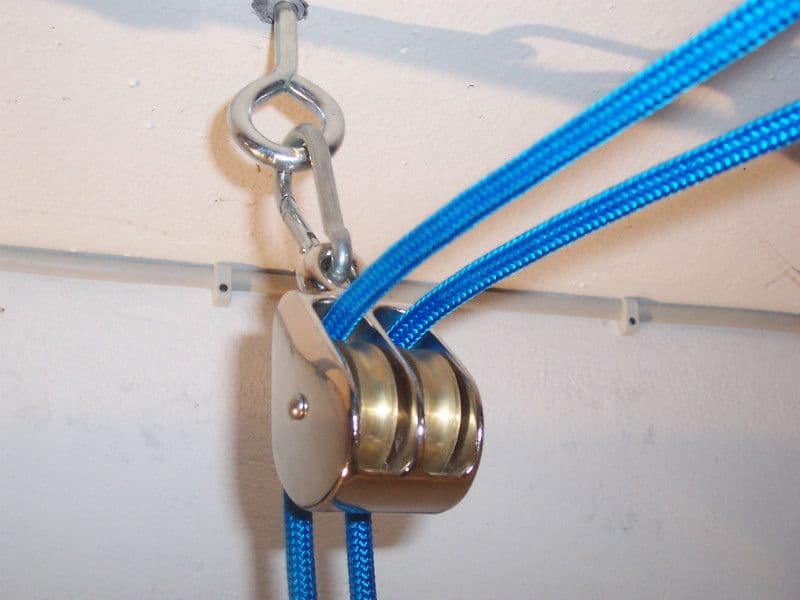

Step 9

Hang a carabiner with a block rope pulley twice in the eyebolts. Guide the rope through this

10

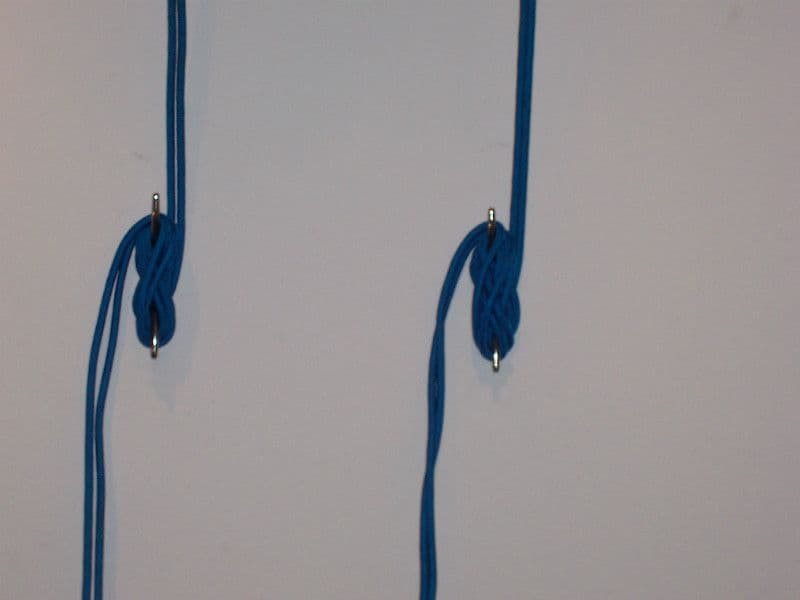

Step 10

Attach two rope cleats to the wall for the remaining rope.
