High table

High table

The suspended bar table

Beginner
90min

Required tools

Magnets 2 pieces
Drilling machine
Crate tape 140x35x2mm (2 pieces)
Wood screws 2.5X15 and 4.4X50
Dowels 6X50
Wooden board e.g. 70X100

Step by step manual

1

Step 1

Paint the picture frame in the desired colour.

2

Step 2

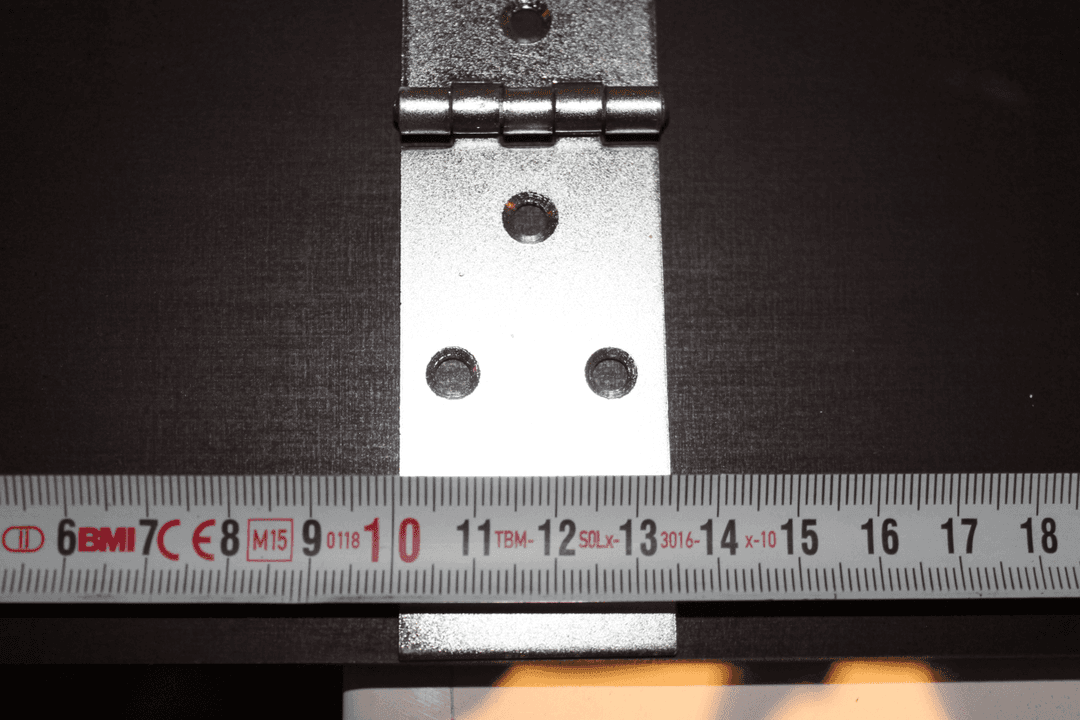

Screw each crate hinge onto the panel with the same side spacing

3

Step 3

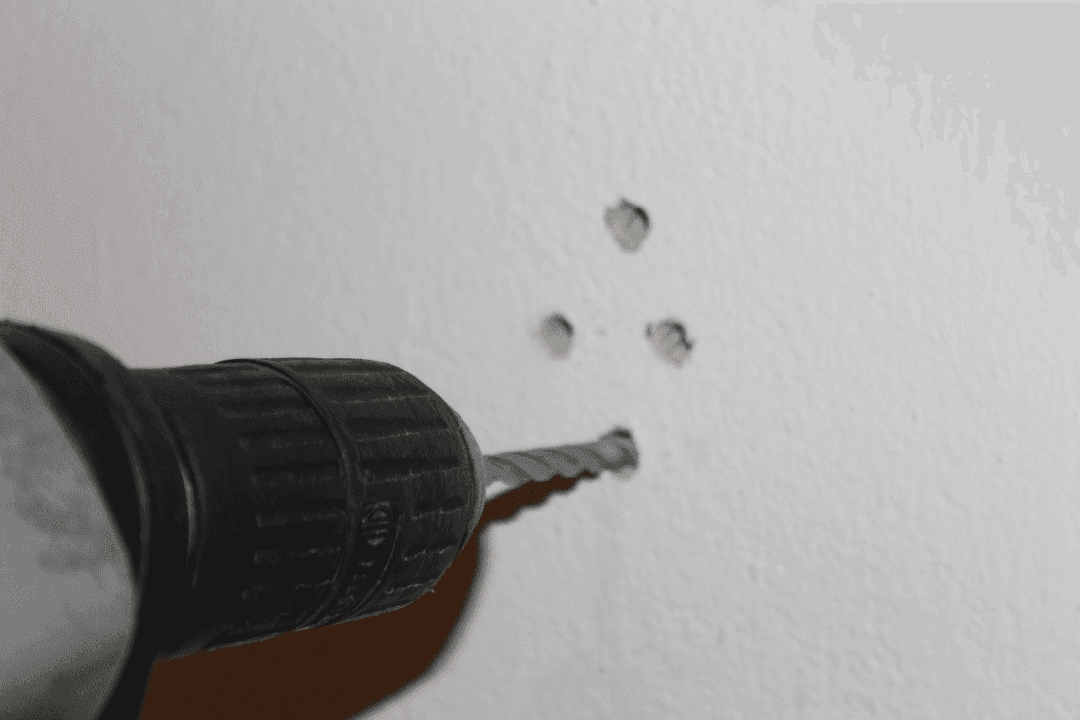

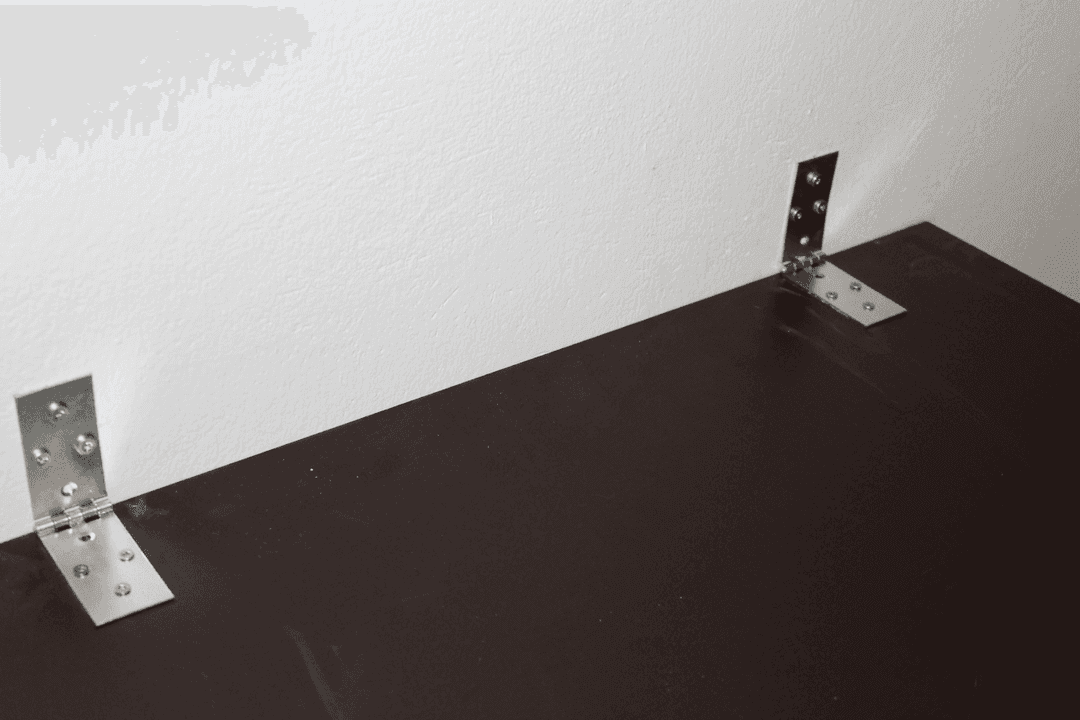

Drill holes in the wall and fit dowels, then attach the crate tape.

Place a table under the top so that it is straight and the crate strap can be easily attached.
4

Step 4

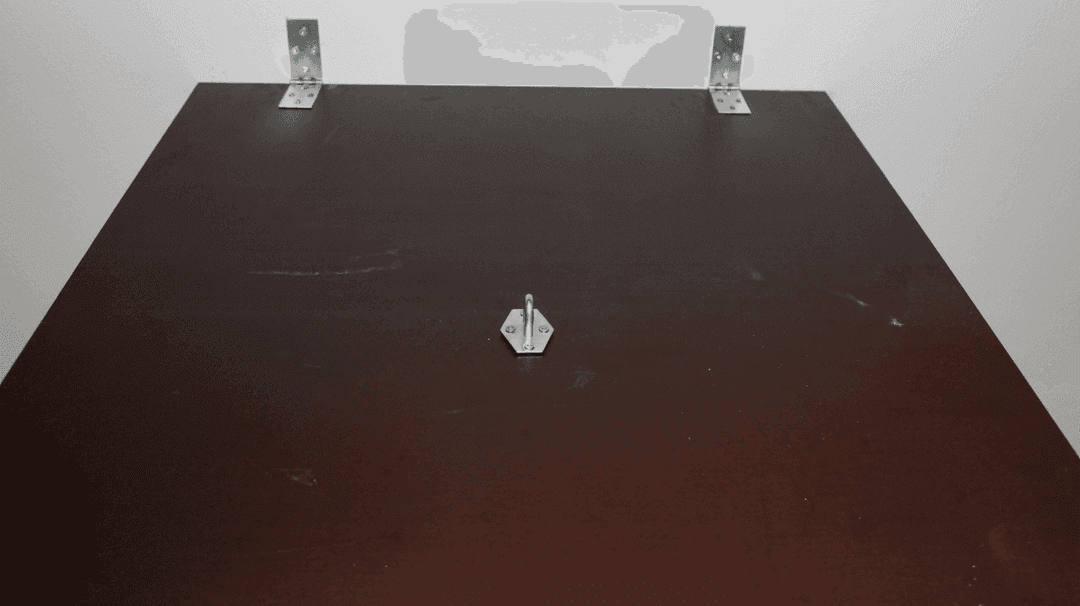

Screw the eye plate to the centre of the plate

5

Step 5

Drill holes in the wall for the second eye plate. So that the eye plate on the table just touches the one on the wall.

6

Step 6

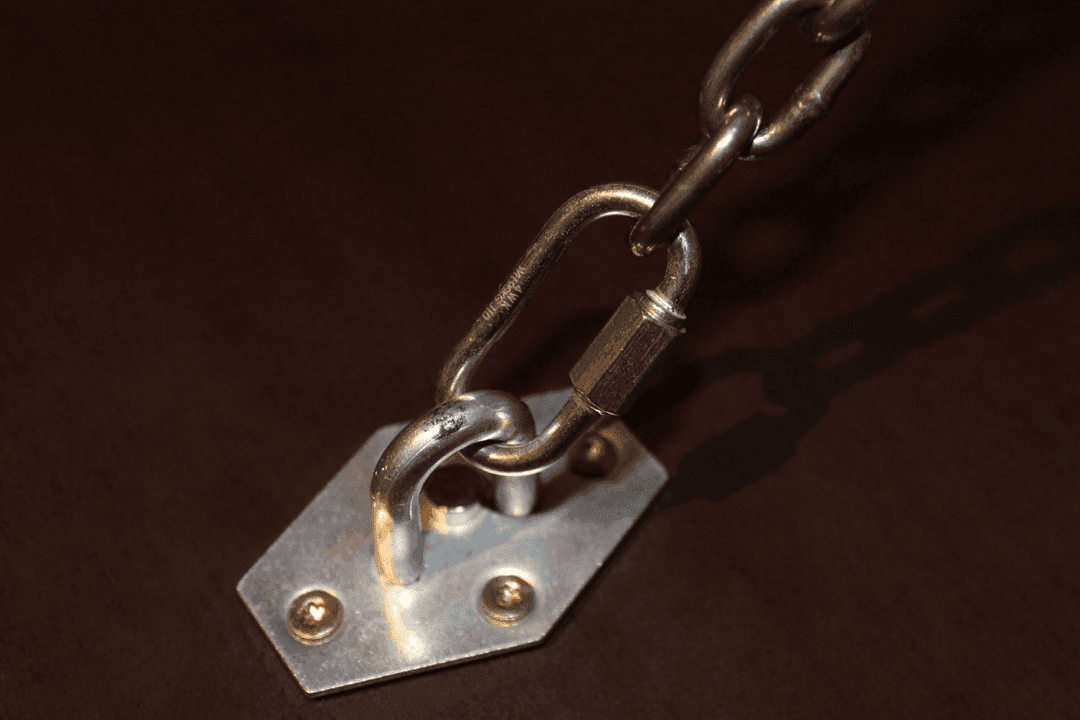

Fix the chain to both eye plates using the quick-release chain fastener.

7

Step 7

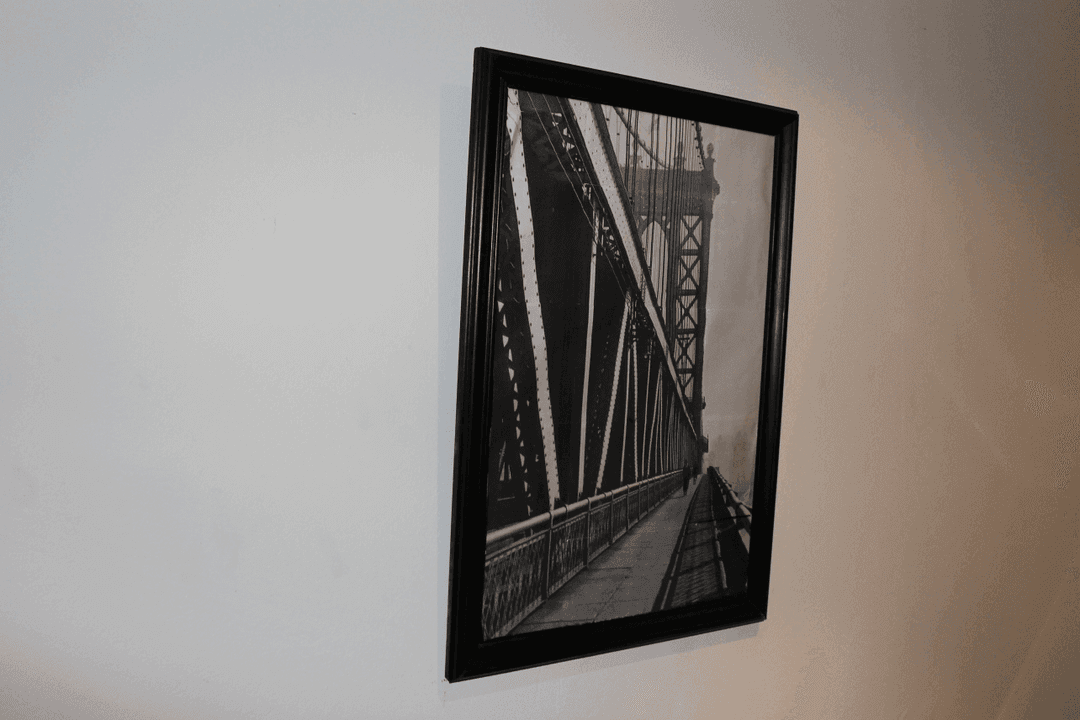

Fix the picture frame with the picture to the underside of the panel.

8

Step 8

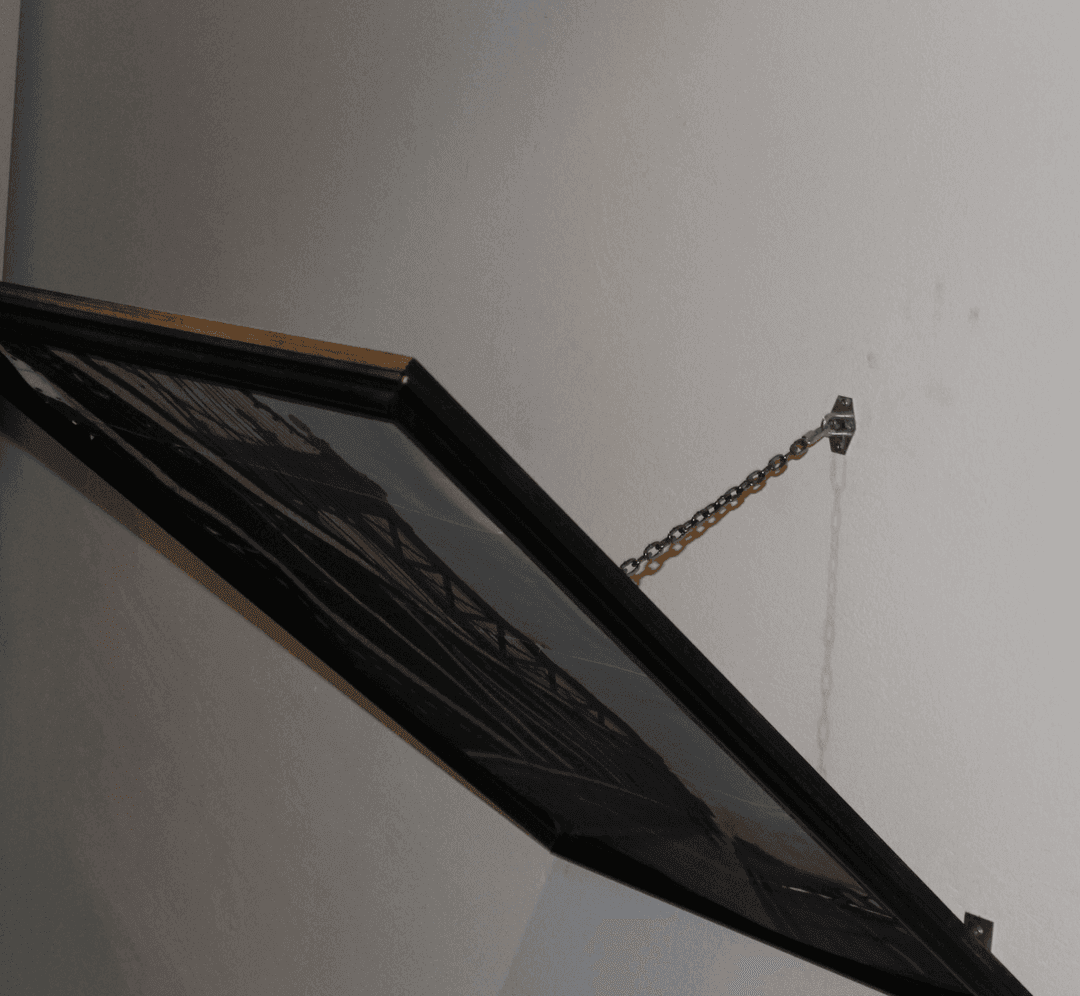

Attach the magnets to the eyebolts. The table can now be folded up and down as required.
