Team swing

Team swing

Swing

Beginner

60min

Required tools

Wooden slats with L-profile

Cordless screwdriver

M8X30 machine screw

Step by step manual

1

Step 1

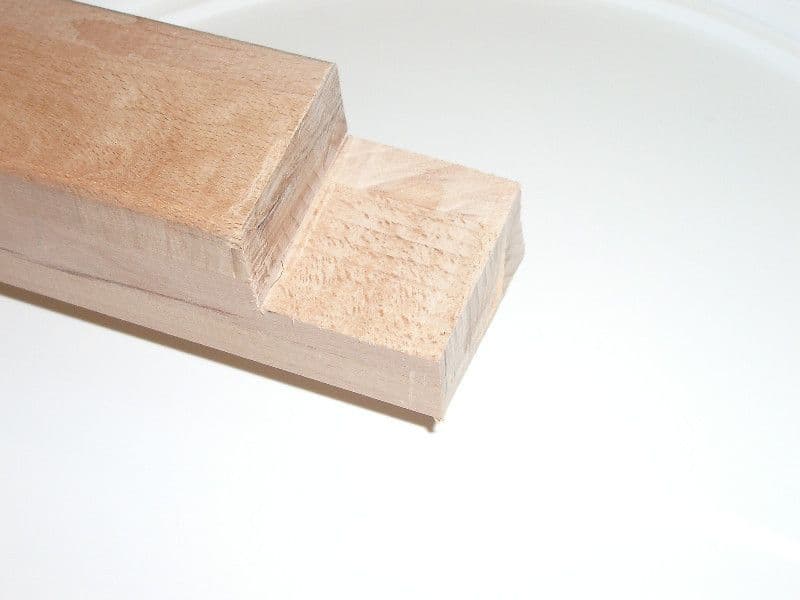

Cut wooden slats with L-profile to size yourself or buy them.

2

Step 2

Check L-profile for evenness and interlocking.

3

Step 3

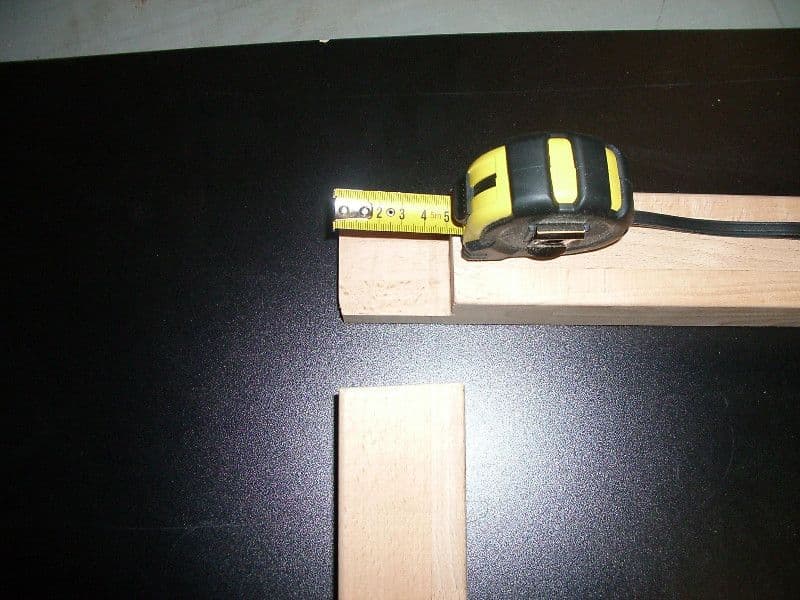

Check the length of the L-profile.

4

Step 4

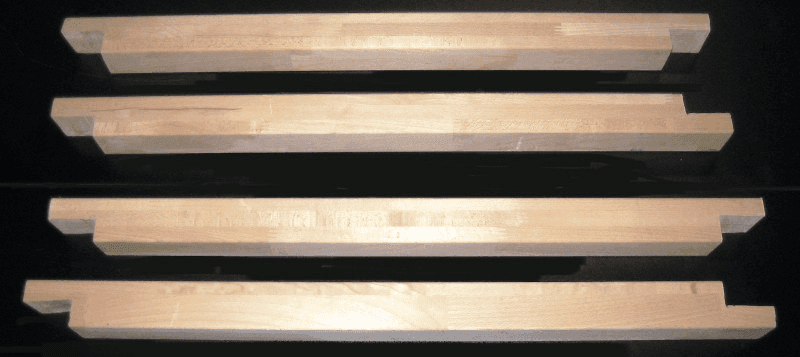

Interlock the L-profiles.

5

Step 5

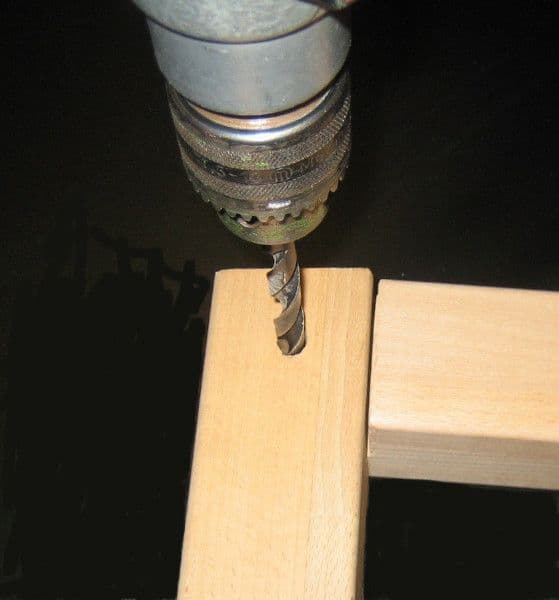

Drill holes in the centre of the L-profile at the corners.

6

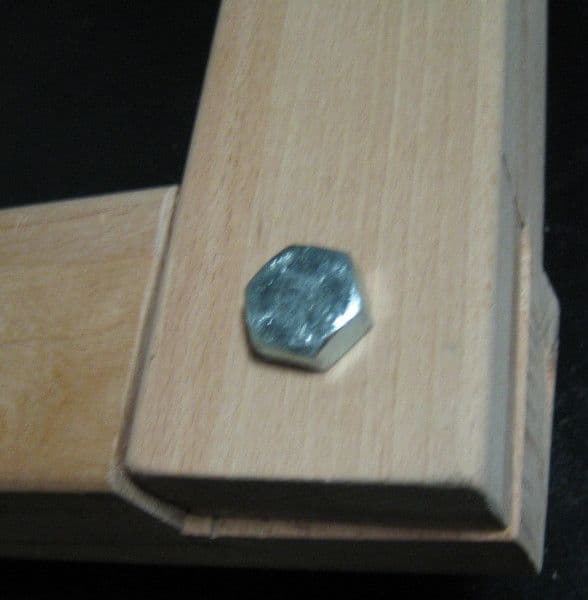

Step 6

Insert the M8 machine screw through the hole

7

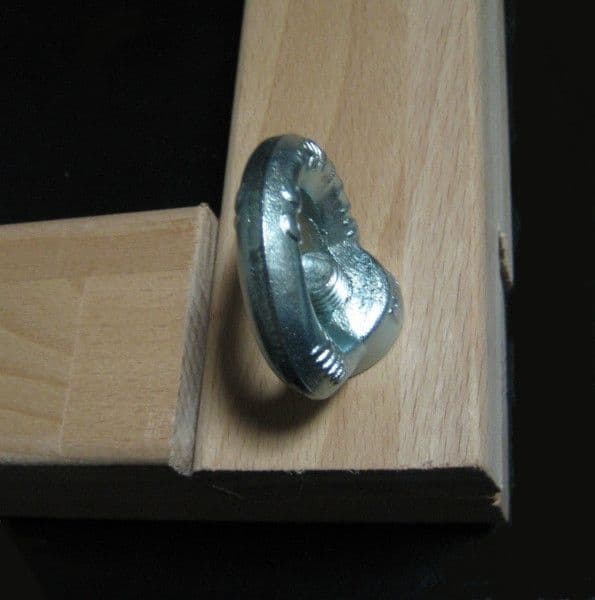

Step 7

Lock screw with ring nut.

8

Step 8

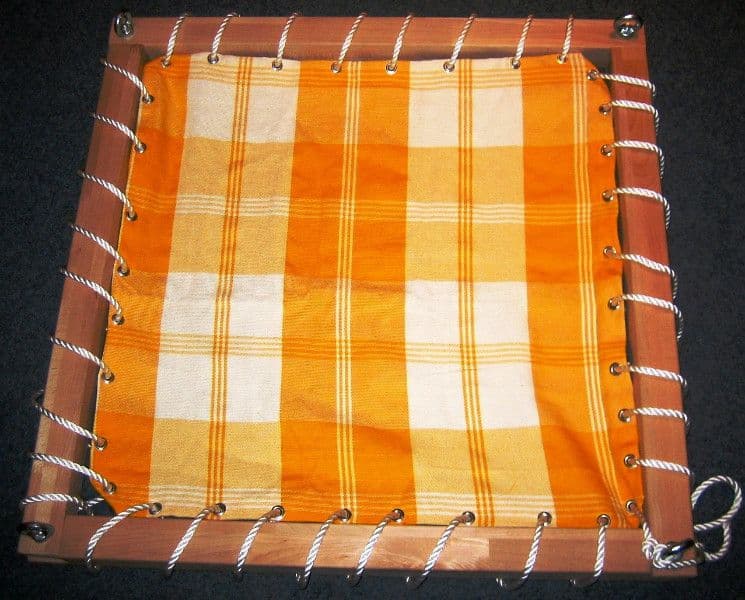

Attach the eyelets to the fabric and fix it to the frame with the rope.

9

Step 9

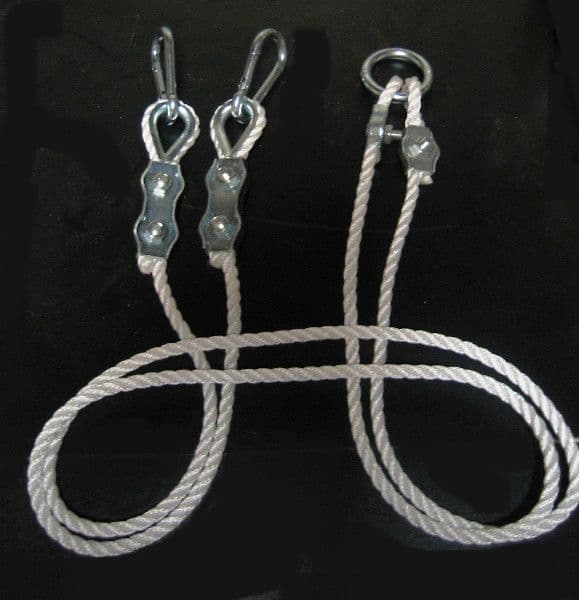

Cut off two 1.5 metre lengths of rope. Place a rope thimble at the beginning of each rope and fasten with a duplex clamp. Place a loop at the end of each rope and insert the swing ring, secure with a simplex clamp. Pull the snap hook through the rope thimble.

10

Step 10

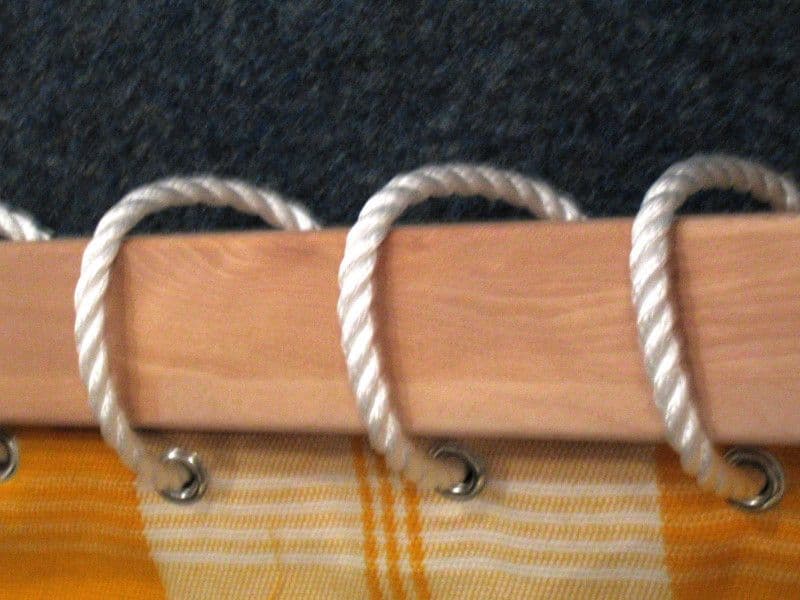

Tighten the cloth with the rope in the frame.

11

Step 11

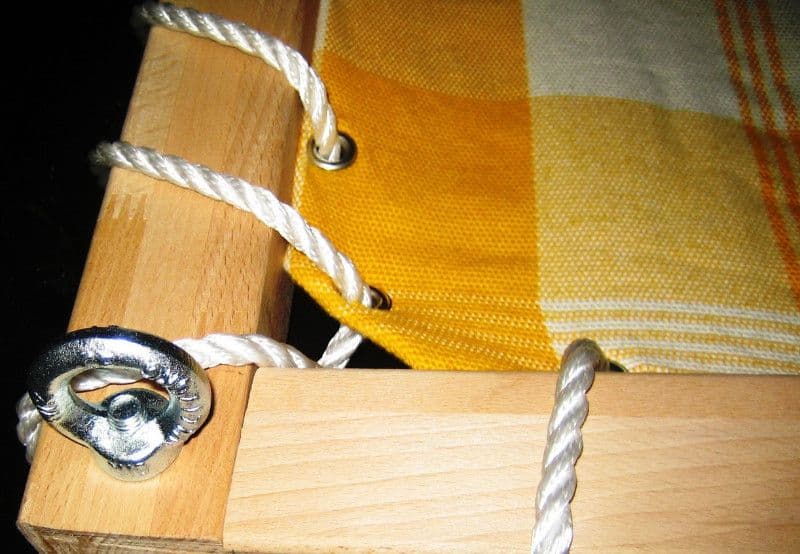

Attach the rope to the eye bolt.
